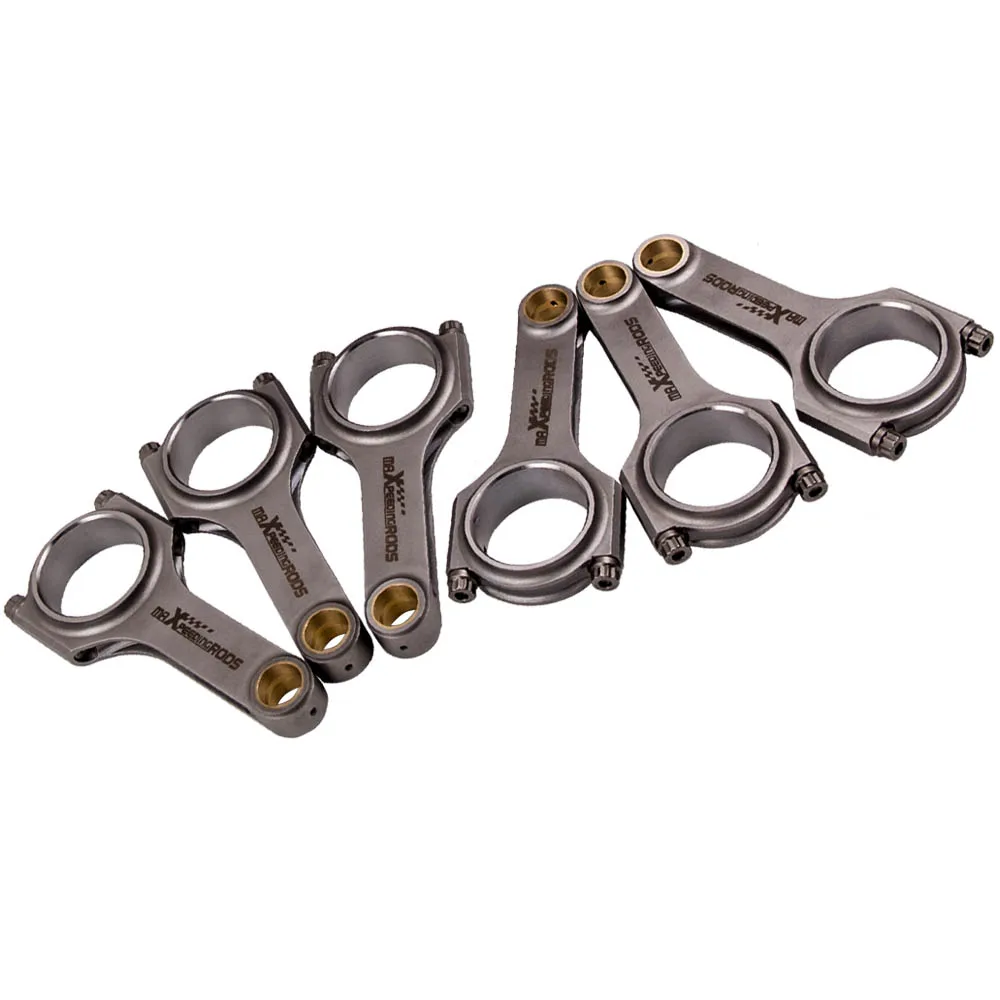

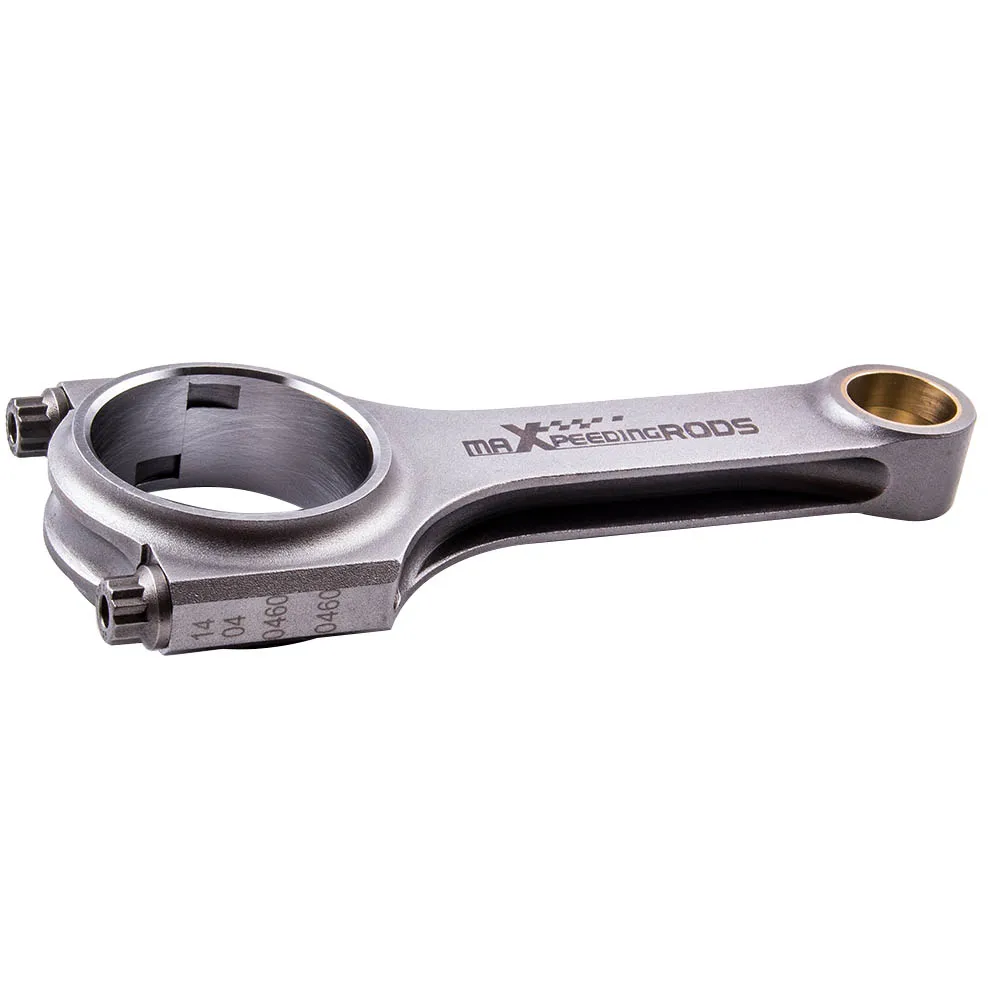

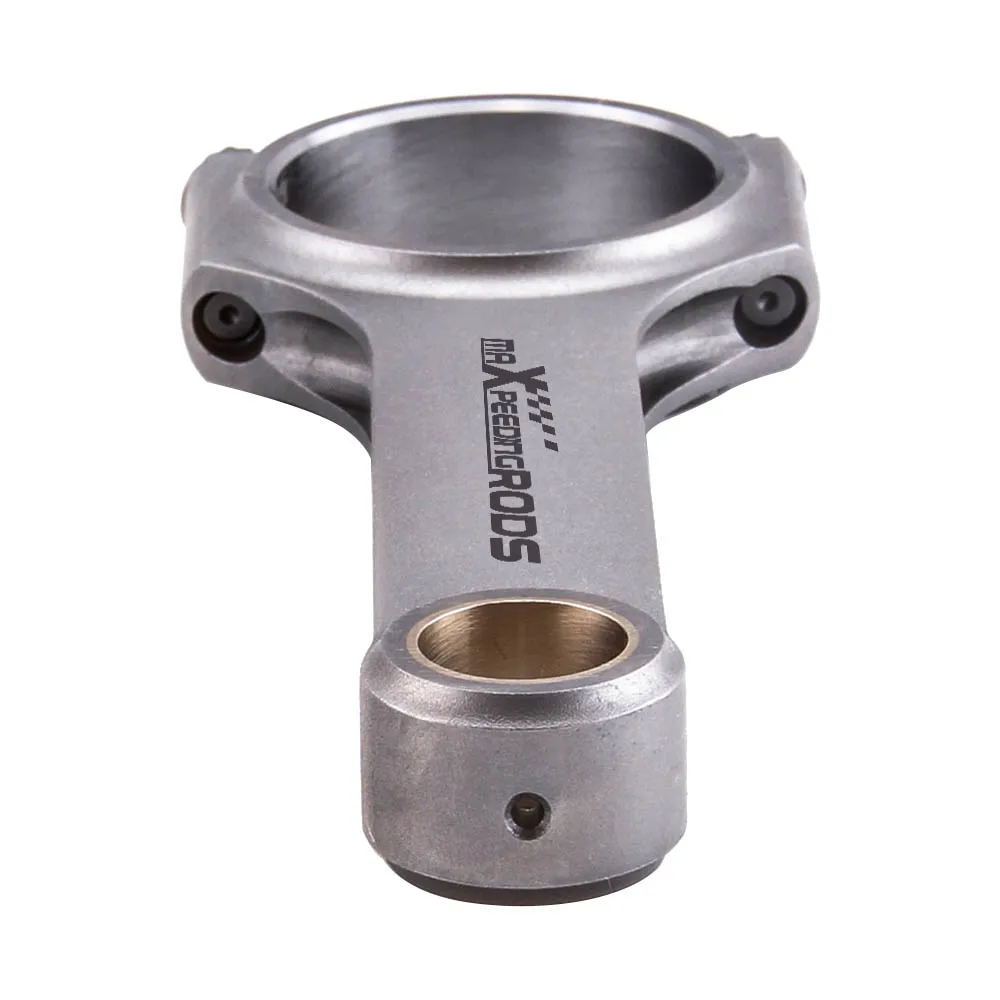

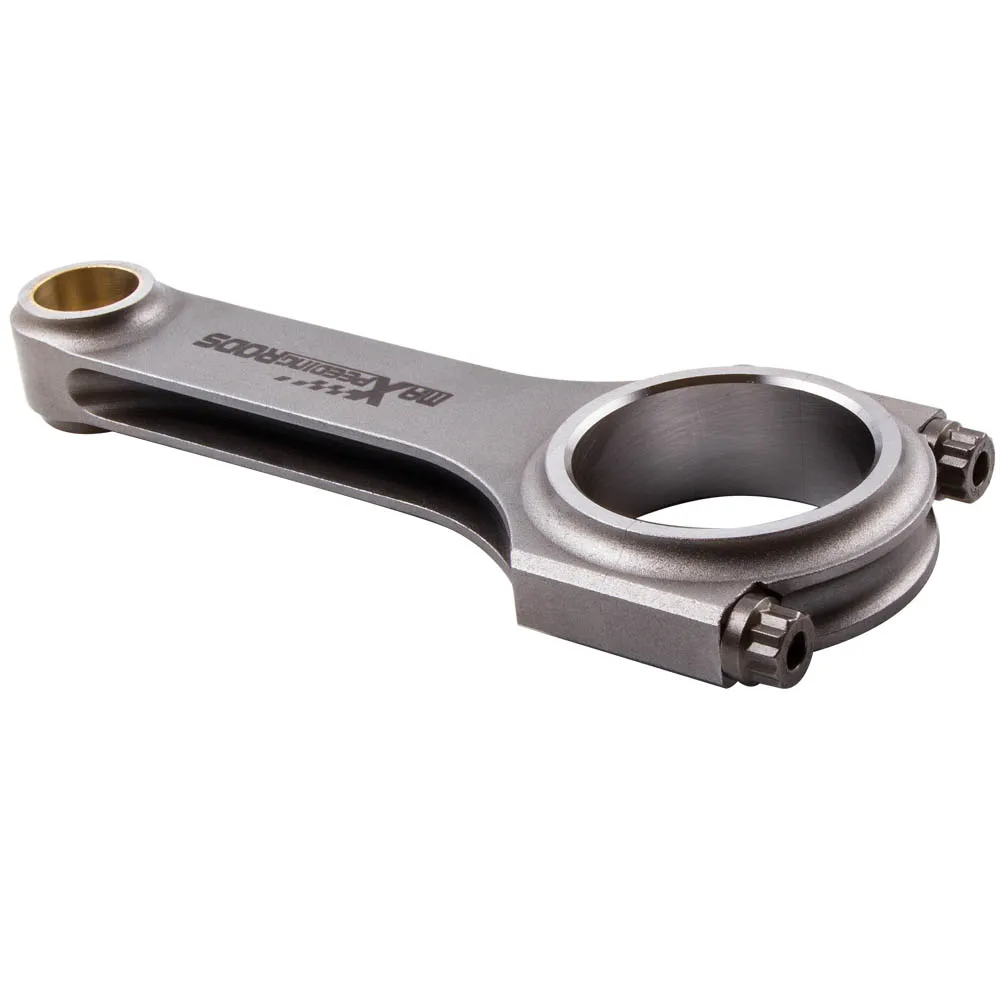

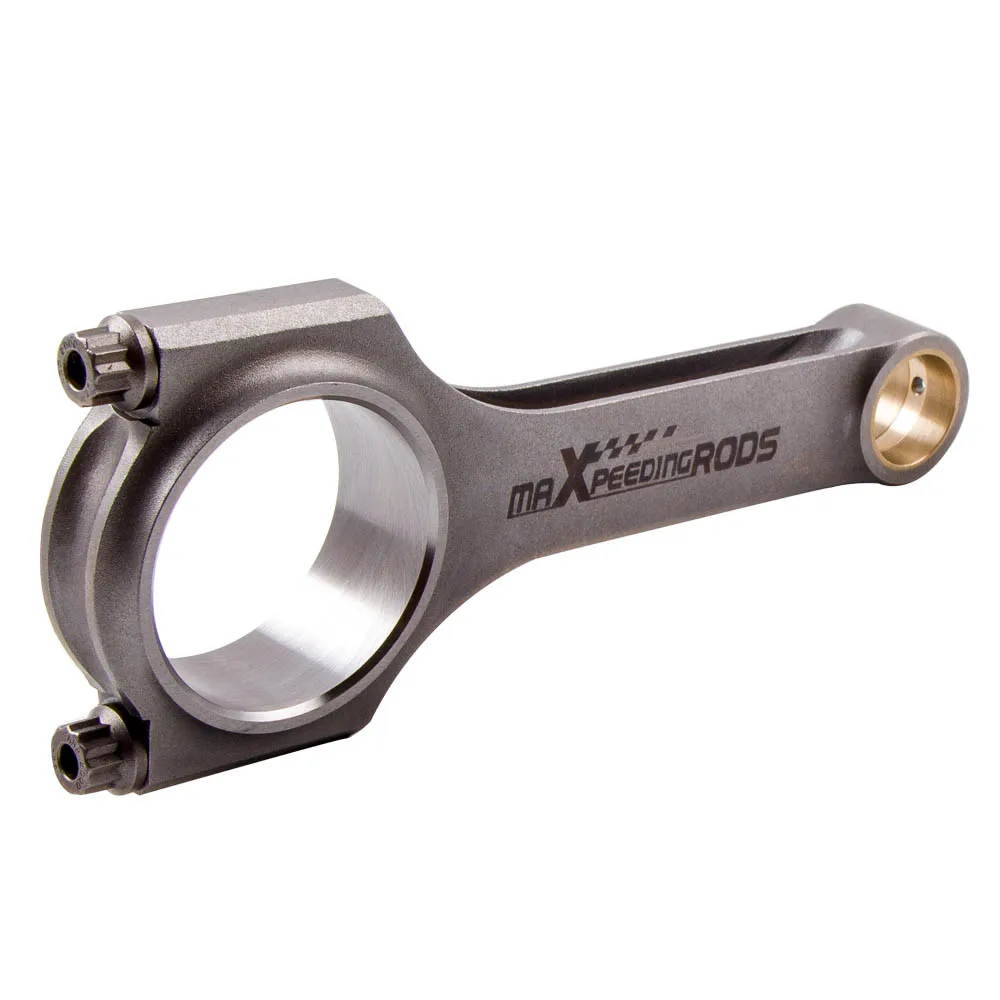

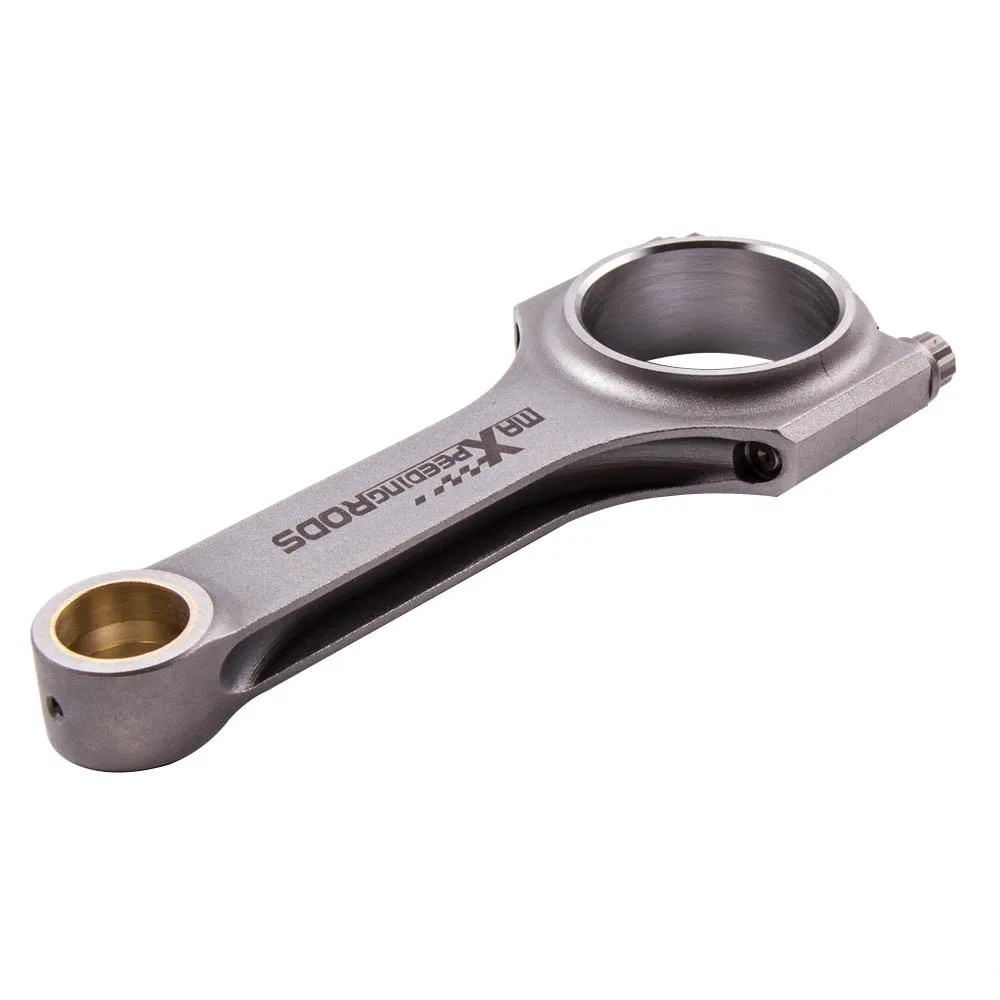

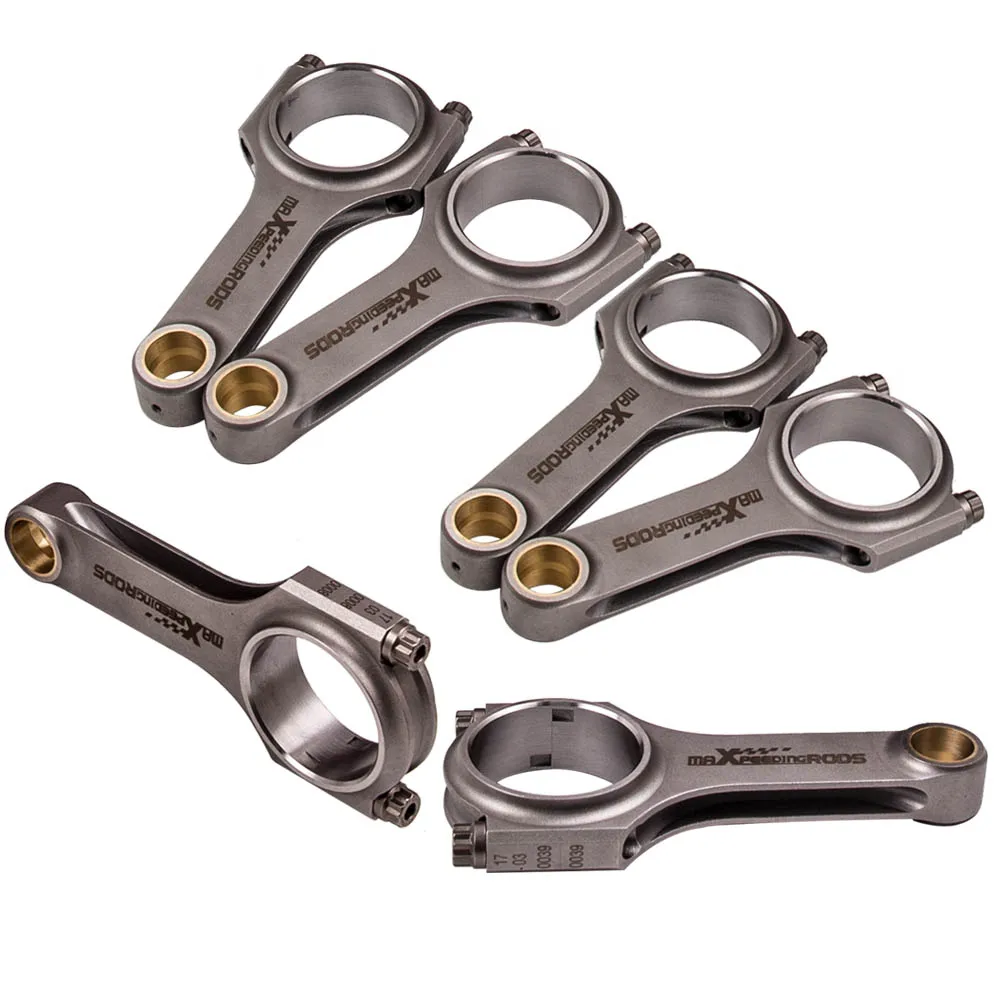

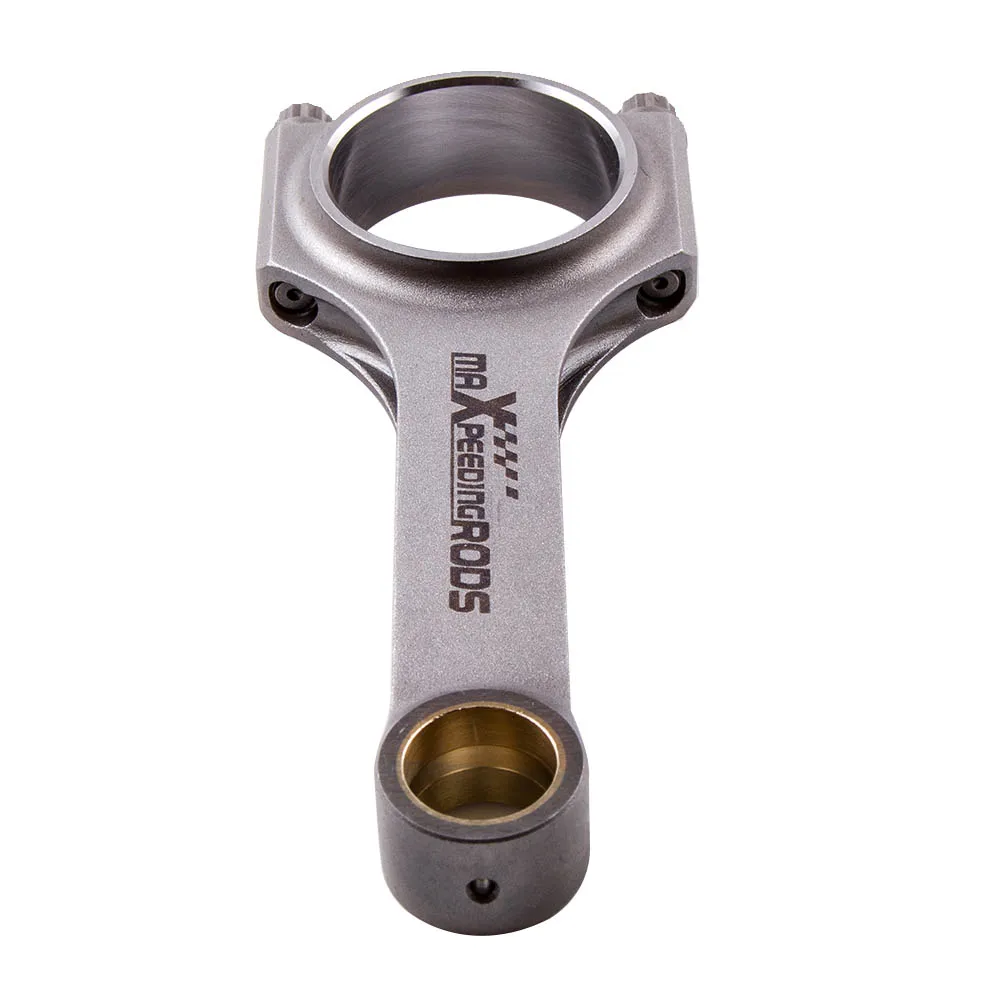

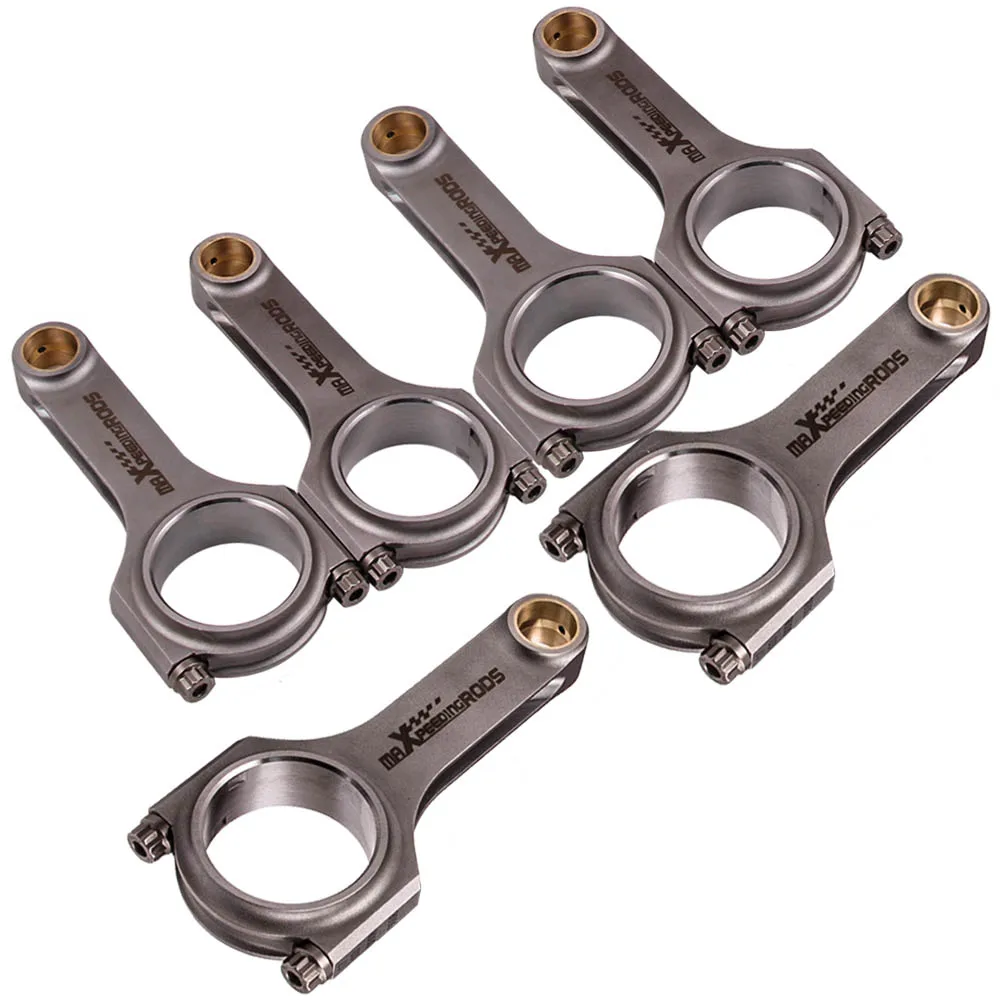

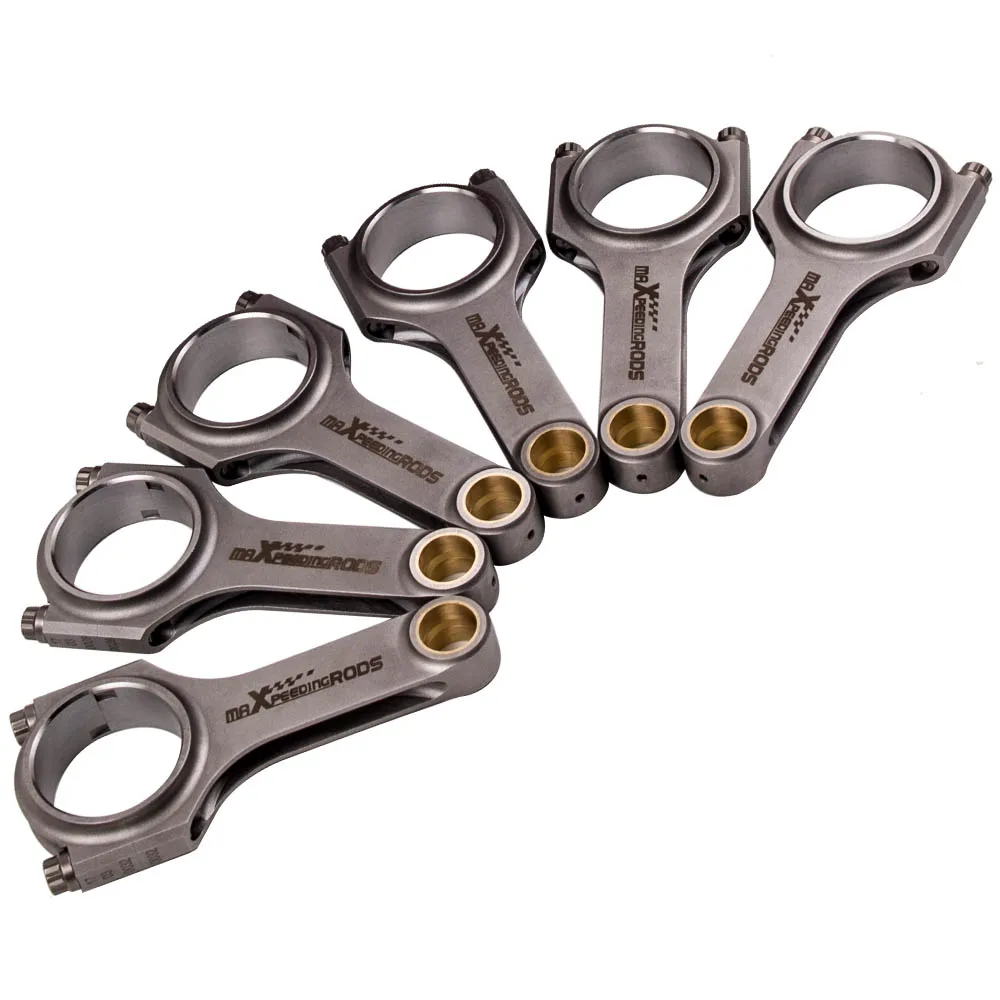

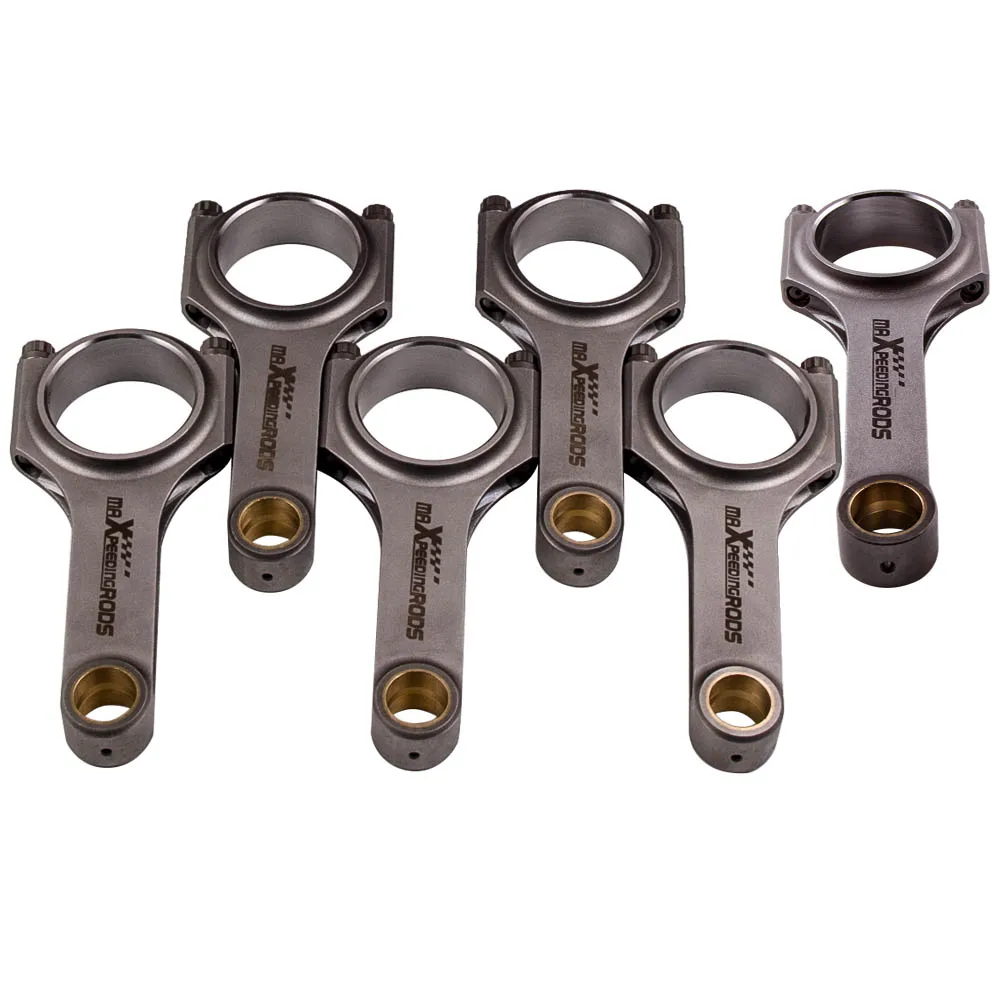

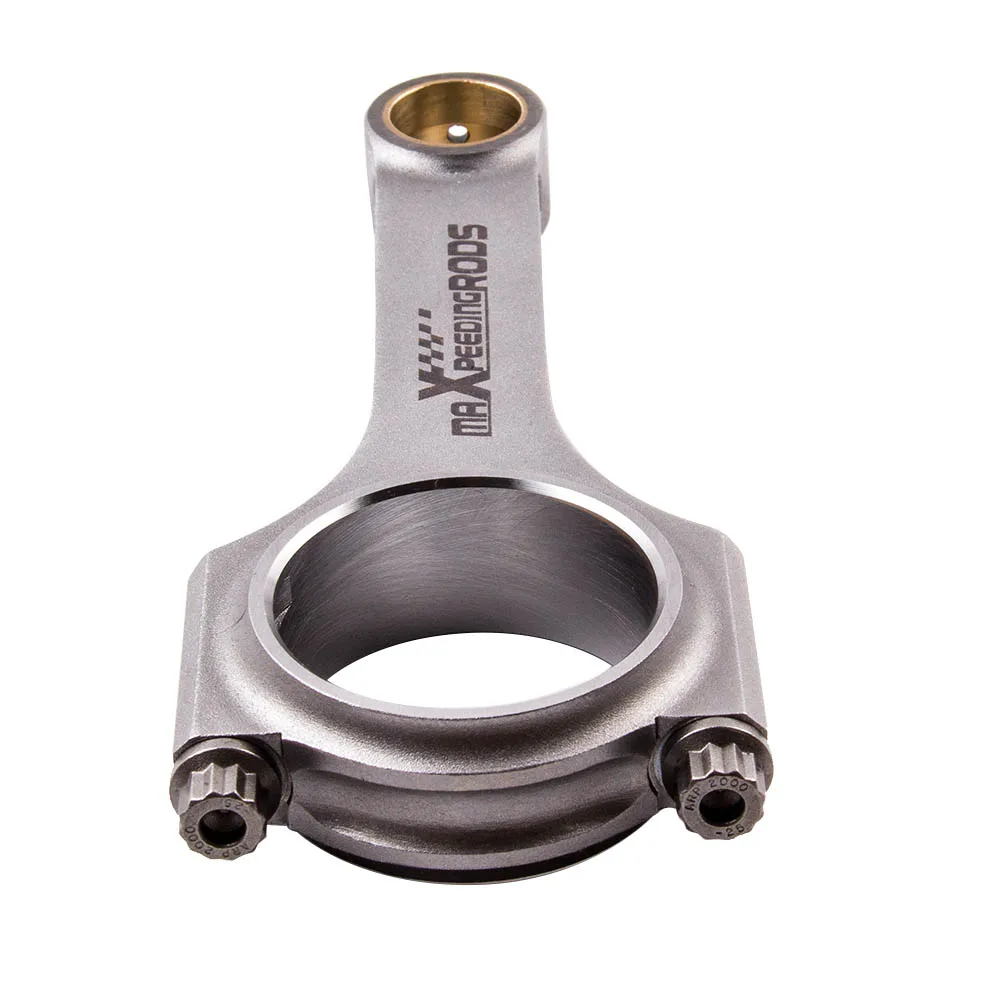

Connecting Rods For BMW S38 B35 E28 E24 E28 E34 M5 M6 ARP BOLTS 600+HP Balanced Piston Pin Racing Conrods 144mm Forged 4340
$421.00 – $506.02
Note : extra shipping fee will be charged for some remote area
All aliexpress shipping method may need 20 to 60 delivery time , express shipping is much more quickly and safe
Please Carefully check the Size of the Rods in Specific and Description
Specification
TüVCertification Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm
Quantity: 6 Pieces a set
Bolts: Including Genuine 3/8" ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Forged 4340 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Application
For BMW S38 B35 1988 M5 M6
For BMW S38 :straight-6 DOHC piston engine
S38B35 1986–1988 , for BMW E28 M5 (NA spec), for BMW E24 M6 (NA spec),; for BMW E24 M635CSi with catalytic converter
S38B36 1989–1993 for BMW E34 M5 (NA spec) and Euro spec 1989–1992
S38B38 1992–1996 for BMW E34 M5
Dimensions
Center to center length: 144mm
Big end diameter: 52mm
Small end diameter: 22mm
Big end width: 23.9mm
Small end width: 23.9mm
Important note:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
Important note:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
window.adminAccountId=244170455;
| Ships From | Australia, Poland, China, GERMANY, Russian Federation, SPAIN, United Kingdom, United States, France, Italy, Czech Republic, Belgium |
|---|---|
| Horse Power | 600-800HP |
| Product Note: | Due to the light and different screen display,the picture and product maybe slightly different |
| Product Type: | This is aftermarket replcement part. |
| Type: | H-beam Connecting Rod Rods Conrods Pleuel Bielle |
| Small end diameter | 22mm |
| Rod Wrist Pin Style | Floating |
| Quantity | 6 Pieces as showing in picture |
| Fitment | For BMW S38 B35 1988 M5 M6 |
| Material | Forged 4340 aircraft chrome moly steel for racing |
| Condition | Brand New |
| Center to center length | 144mm |
| Bolts | With 12 ARP 2000 3/8" bolts |
| Big end diameter | 52mm |
| Beam Type | H-Beam |
| Application: | for BMW S38 B35 1988 M5 M6 |
| Model Number | H-beam Connecting Rod Rods Conrods Pleuel Bielle |
| Claims: | No any proprietary rights,affiliate and sponsorship with the third party marks. |
